Technical Specifications
| Elevation angle adjust range |
50° |
| Max. wind resistance performance |
40 m/s |
| Structure material |
Hot-dipped galvanized steel ≥65μm / Galvanized aluminum magnesium |
| System guarantee |
3 years |
| Working temperature |
-40℃ - +80℃ |
| Weight per set |
200 - 400 KGS |
| Solar panels quantity per set |
15 – 60 pieces |
| Total power per set |
5kW - 30kW |
Product Overview

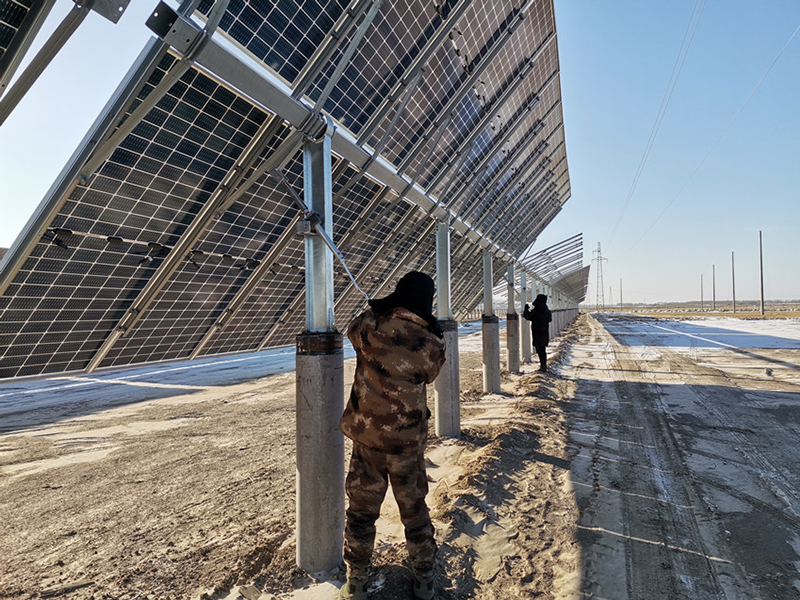

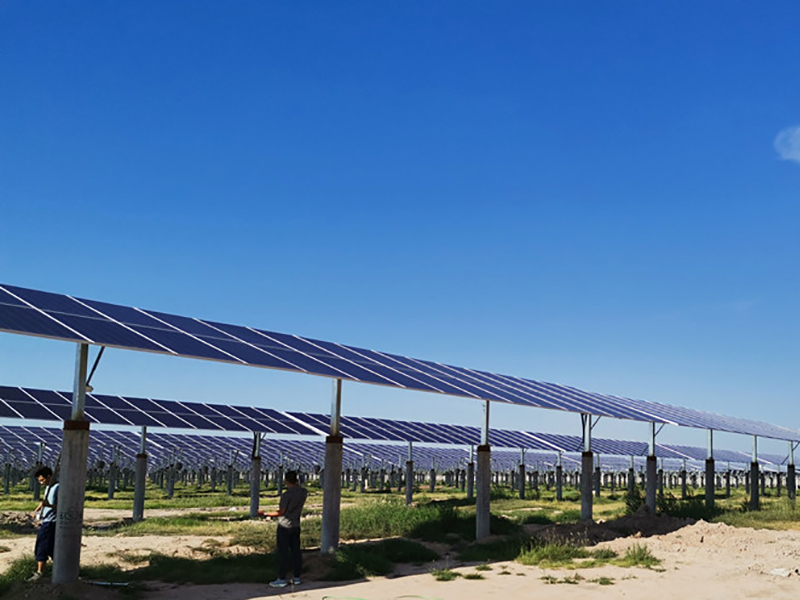

The ZRA adjustable fixed structure features a manual actuator to track the sun's elevation angle with stepless adjustment. By implementing seasonal manual adjustments, this structure can increase power generation capacity by 5%-8%, effectively reducing LCOE and increasing revenue for investors.
⚙️
High Durability: Independently developed manual adjust actuator with IP65 protection grade, sealed lead screws, and lubricating oil tanks to withstand dust, sand, and high humidity.
🛡️
Advanced Corrosion Resistance: Utilizing galvanized aluminum magnesium with a self-repairing coating, offering 20 times the anti-corrosion level of standard galvanized steel.
⚡
Efficient Installation: Optimized for low installation costs. With a customized crank, one person can adjust approximately 3MW per day.
🏗️
Stable Design: Features a double beam structure specifically designed for 500W+ large-size solar panels, ensuring stability in strong wind environments.

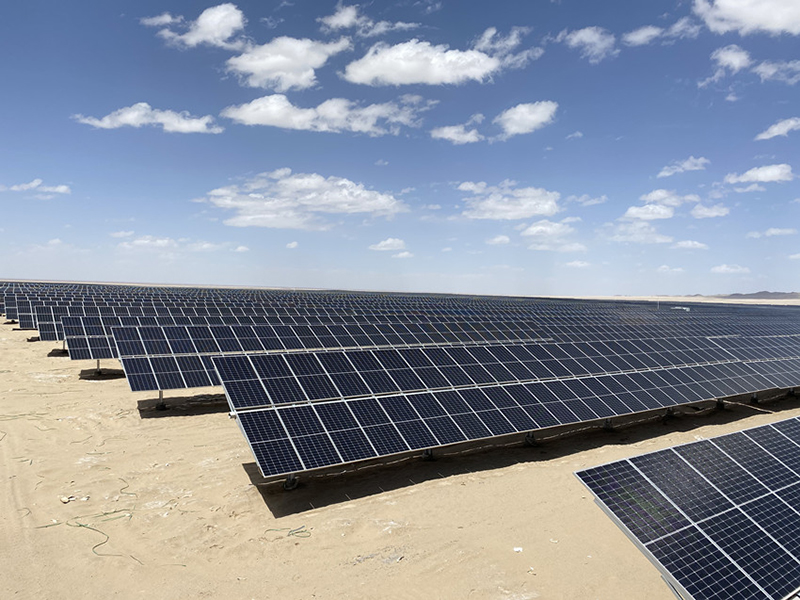

These structures are specifically customized for each project, ensuring a hassle-free experience even in harsh environments such as deserts, rocky terrains, or complex acid and alkali areas. Under identical structural strength requirements, the steel consumption is reduced by 10% - 20%, further lowering the investment cost of the power station.
Frequently Asked Questions
How much can the ZRA structure increase power generation?
By using the manual actuator for seasonal elevation angle adjustments, the structure can increase power generation capacity by 5% to 8% compared to traditional fixed structures.
What environments is this structure suitable for?
It is designed for harsh environments, including deserts, rocky terrains, and areas with high humidity or multi-acid and alkali complexity, thanks to its IP65 protection and advanced anti-corrosion materials.
What is the lifespan of the anti-corrosion coating?
The galvanized aluminum magnesium material features self-repairing characteristics that ensure the support remains free of corrosion for up to 25 years.
Is it difficult to adjust the angles manually?
No. Equipped with a customized adjustment crank, the process is very efficient—a single person can adjust approximately 3MW of solar capacity per day.
Can it support large 500W+ solar panels?
Yes, the system utilizes a double beam structure designed specifically to handle the large wing spread and weight of mainstream 500W+ solar panels while maintaining safety in high winds.
What is the wind resistance rating?
The structure is engineered for high performance with a maximum wind resistance of up to 40 m/s.
