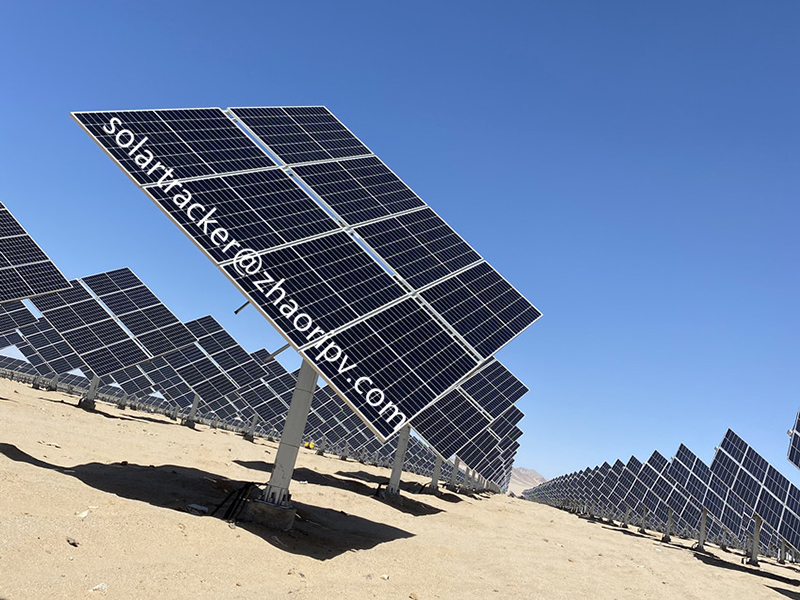

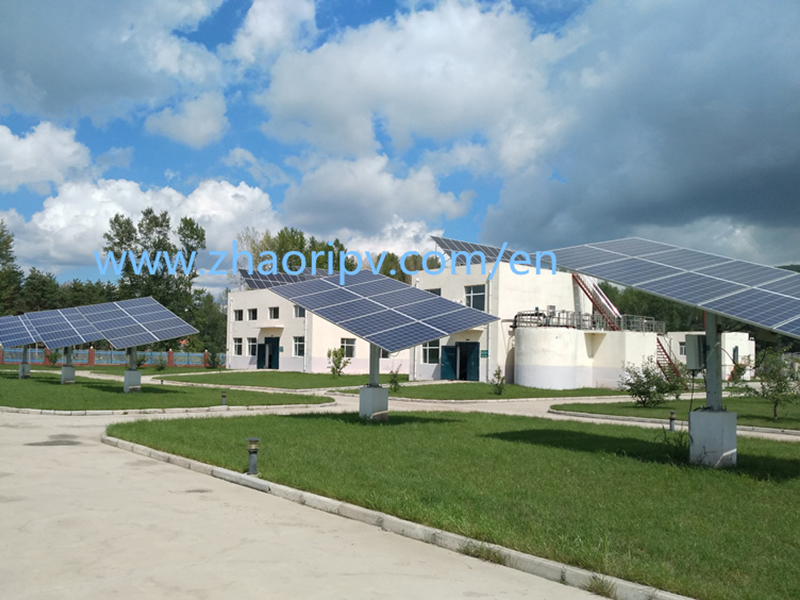

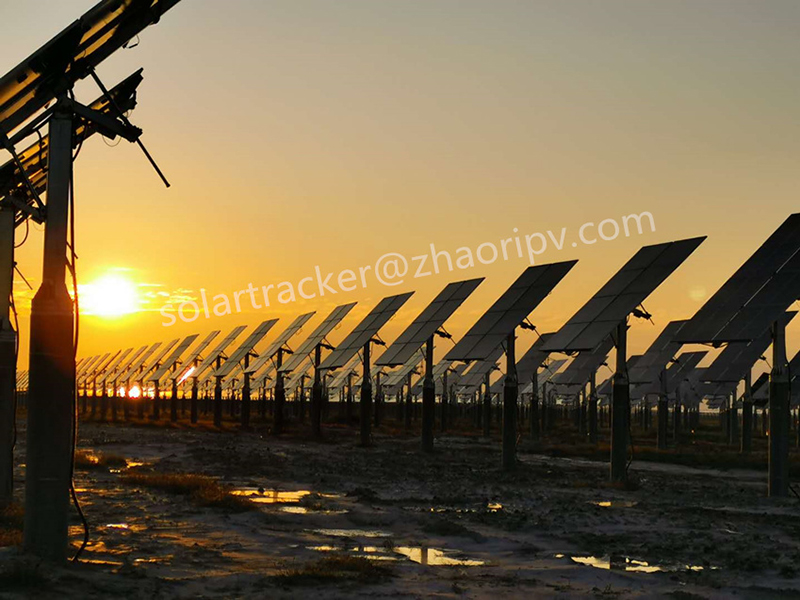

ZRS semi-auto dual axis solar tracking system is our patented product, it owns very simple structure, very easy for installation and maintenance, passed CE and TUV certification.
ZRS semi-auto dual axis solar tracking system is a patented product featuring a simple structure, easy installation, and maintenance. It has passed CE and TUV certifications. The system utilizes one automatic axis to track the sun in the east-west direction daily, and one manual axis for the south-north direction, requiring manual adjustment only 4 times a year. This adjustment is extremely simple, taking only about half a minute.
High Efficiency: Increases energy yield by +25% - 35% compared to fixed systems.
Cost-Effective: Lowest cost and low power consumption (only ~3kWh/set/year).
Robust Design: Solid bracket with excellent wind (>40 m/s) and snow resistance.
Smart Control: Intelligent control with self-correction and self-positioning.
The manual adjustment employs a specialized adjusting pole allowing for stepless adjustment. A single person can easily complete the elevation angle adjustment. Its independent support structure offers superior terrain adaptability and does not interfere with plant growth or rainfall coverage.
Technical Specifications
Control mode
Time + GPS
Average tracking accuracy
0.1° - 2.0° (adjustable)
Gear motor power
24V / 1.5A
Output torque
5000 N·M
Tracking power consumption
< 0.01 kWh/day
Azimuth angle tracking range
±50°
Elevation angle adjustment range
45°
Max. wind resistance in horizontal
> 40 m/s
Max. wind resistance in operation
> 24 m/s
Material
Hot-dipped galvanized ≥ 65μm
System warranty
3 years
Working temperature
-40℃ — +80℃
Technical standard & certificate
CE, TUV
Weight per set
150 - 250 KGS
Total power per set
1.5kW - 5.0kW
Frequently Asked Questions
How much more energy can this tracker generate?
The ZRS semi-auto dual axis tracker can increase energy efficiency by 25% to 35% compared to traditional fixed solar structures.
How often is manual adjustment required?
Manual adjustment for the elevation angle is only needed 4 times per year, and the process is very quick, taking only about 30 seconds per set.
What is the power consumption of the system?
The system is highly energy-efficient, consuming only about 3kWh per set per year, with a daily tracking consumption of less than 0.01kWh.
Is the system resistant to extreme weather?
Yes, the system is designed with a solid bracket and hot-dipped galvanized material, offering wind resistance of over 40 m/s in horizontal position and excellent snow resistance.
Can this tracking system be used on uneven terrain?
Yes, its independent support structure provides better terrain adaptability and does not block sunshine or rain from reaching plants below.
What certifications does the product have?
The ZRS tracking system has passed both CE and TUV certifications, ensuring mature and reliable technology.
