Although we can't influence periods of sunshine, we can make better use of them. ZRD dual axis solar tracker is one of the best ways to maximize solar energy harvesting. The ZRD dual axis solar tracking system features two automatic axes tracking the azimuth angle and elevation angle of the sun daily. Its simple structure ensures easy installation and maintenance, making it a highly efficient solution for solar power stations.
| Control mode | Time + GPS |
| Average tracking accuracy | 0.1° - 2.0° (adjustable) |
| Gear motor | 24V / 1.5A |
| Output torque | 5000 N·M |
| Tracking power consumption | < 0.02kwh/day |
| Azimuth angle tracking range | ± 45° |
| Elevation angle tracking range | 45° |
| Max. wind resistance in horizontal | > 40 m/s |
| Max. wind resistance in operation | > 24 m/s |
| Material | Hot-dipped galvanized steel (> 65μm) / Galvanized aluminum magnesium |
| System guarantee | 3 years |
| Working temperature | -40℃ — +75℃ |
| Technical standard & certificate | CE, TUV |
| Weight per set | 170 KGS - 210 KGS |
| Total power per set | 2.0kW - 4.5kW |
Supported Solar Panel Sizes:
1650mm x 992mm | 1956mm x 992mm | 2256mm x 1134mm | 2285mm x 1134mm | 2387mm x 1096mm | 2387mm x 1303mm (testing) | Other common size solar panels on the market.

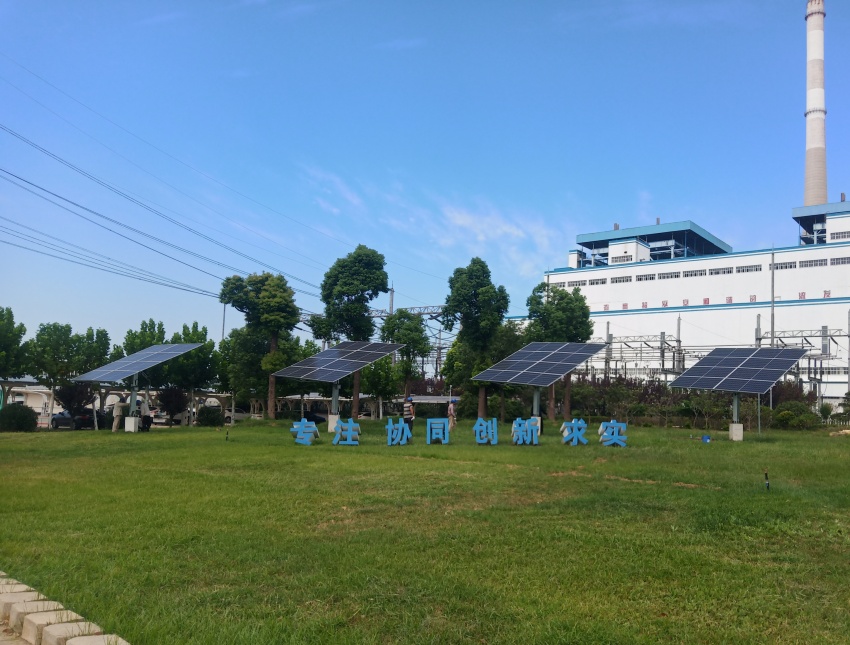

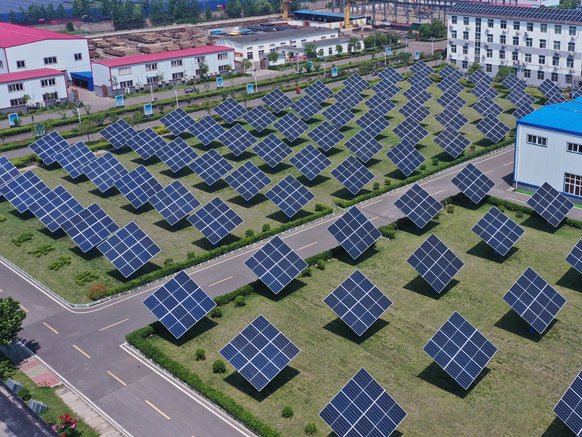

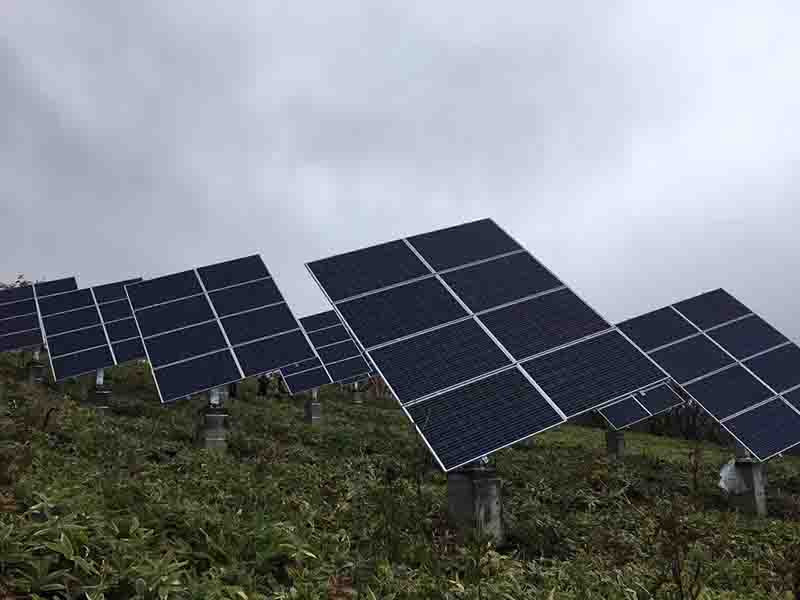

This full automatic dual axis solar tracking system has been deployed in more than 40 PV power stations globally. Its reliability and power generation improvement have been widely recognized by international customers.
