| Control mode | Time + GPS |
| System type | Independent drive / 2-3 rows linked |
| Average tracking accuracy | 0.1° - 2.0° (adjustable) |
| Gear motor | 24V / 1.5A |
| Output torque | 5000 N·M |
| Tracking power consumption | 0.01kwh / day |
| Azimuth angle tracking range | ±50° |
| Elevation tilted angle | 10° - 30° |
| Max. wind resistance in horizontal | 40 m/s |
| Max. wind resistance in operation | 24 m/s |
| Material | Hot-dipped galvanized ≥65μm |
| System warranty | 3 years |
| Working temperature | -40℃ — +75℃ |
| Weight per set | 160KGS - 350KGS |
| Total power per set | 5kW - 10kW |
The ZRT tilted single axis solar tracking system features a tilted axis (10°– 30° tilt) designed to track the sun's azimuth angle efficiently. Specifically engineered for medium and high latitude regions, each set can accommodate 10 - 20 solar panels, potentially increasing power generation by approximately 15% - 25%.

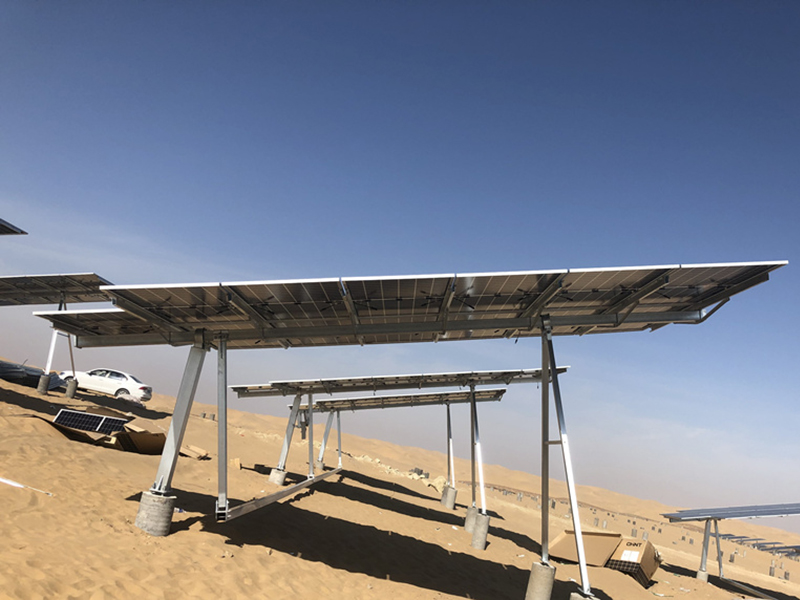

Utilizes three-point supports for superior structural integrity and enhanced wind resistance with zero shaking clearance.
UPE material solar bearings (4.5 million molecular weight) provide self-lubrication and aging resistance for 25 years.
IP65 grade protection for electronics and double-layer core component protection, ideal for desert and water-based projects.

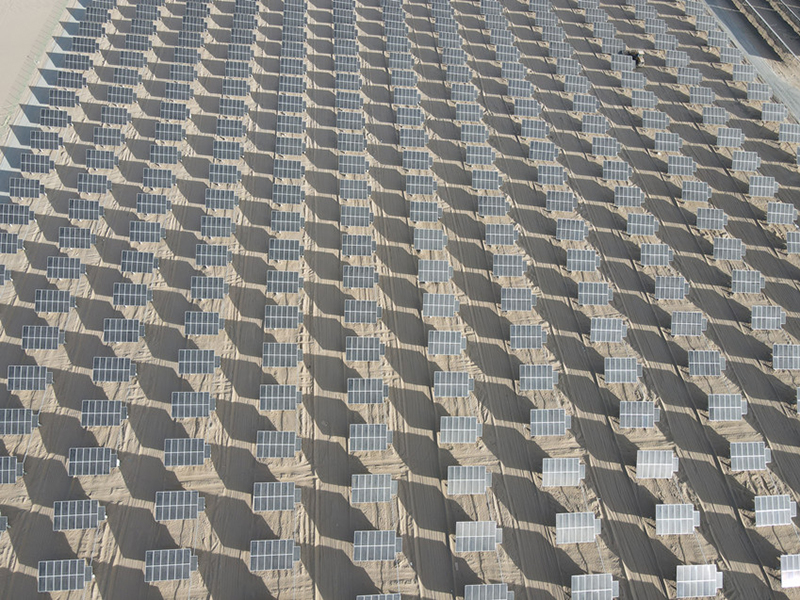

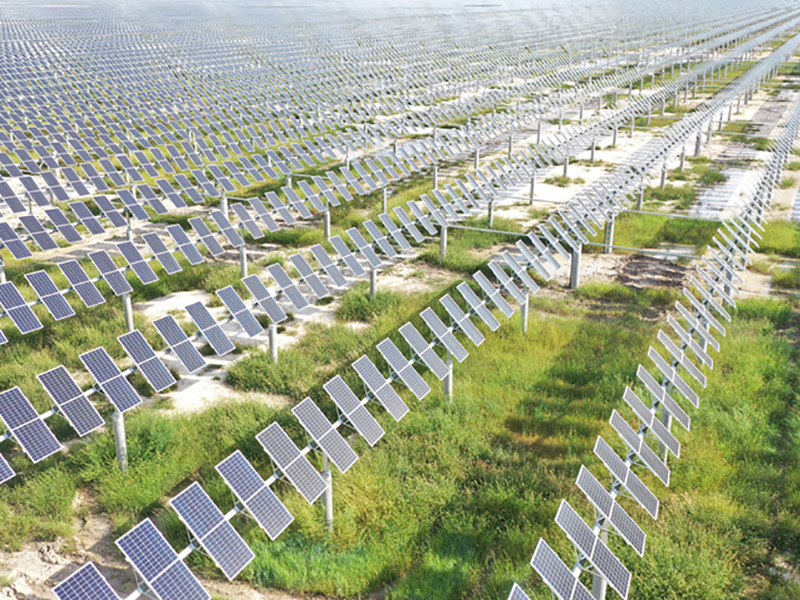

The structure is constructed using hot-dipped galvanized steel or advanced galvanized aluminum magnesium, ensuring high strength and excellent corrosion resistance for coastal installations. With a user-friendly design, spare parts can be replaced quickly on-site without professional personnel. To date, over 6,000 sets of the ZRT series have been deployed globally across public utilities, industrial, commercial, and household solar projects.
