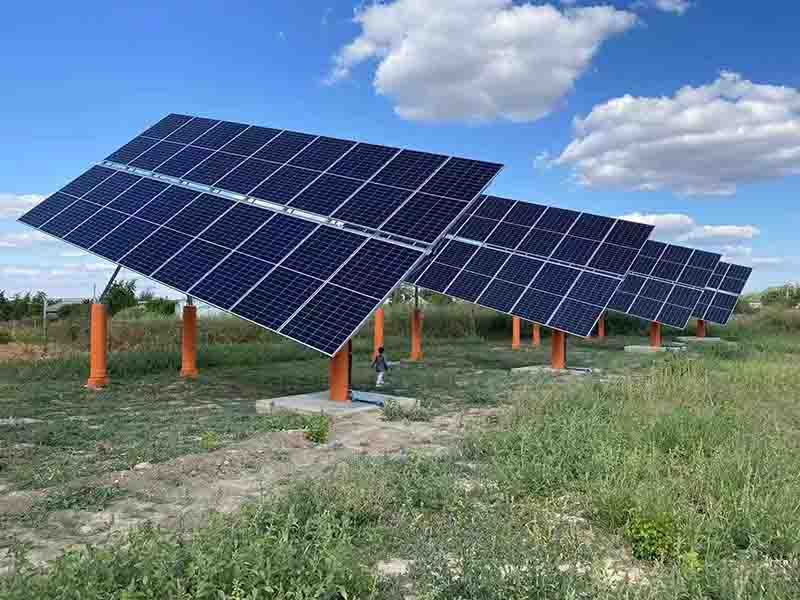

Famous ZRT-16 Tilted Single Axis Solar Tracking System Quotes, Product

ZRT tilted single axis solar tracking system has one tilted axis (10°– 30° tilted) tracking the azimuth angle of the sun. Each set mounting 10 - 20 pieces of solar panels, increase your power generation by about 15% - 25%.

Send Inquiry

Product Description

ZRT series tilted single axis solar tracking system has many product models, such as ZRT-10 for supporting 10 panels, ZRT-12, ZRT-13, ZRT-14, ZRT-16, etc. ZRT-16 is one of the most popular models, it is one of the ZRT series products with the lowest average cost. The total solar module installation area is generally between 31 - 42 square meters, with 10 - 15 degree tilted angle.

Technical Specifications

Control Mode Time + GPS

System Type Independent drive / 2-3 rows linked

Tracking Accuracy 0.1° - 2.0° (adjustable)

Gear Motor / Torque 24V/1.5A | 5000 N·M

Power Consumption 0.01kwh/day

Tracking Range Azimuth ±50° | Elevation 10°-15°

Wind Resistance Max 40 m/s (Horizontal)

Material Hot-dipped galvanized ≥65μm

Warranty & Temp 3 Years | -40℃ — +75℃

The dual axis and tilted single axis solar tracking systems are unique in today's market. By independently developing two different driving & control solutions specially designed for solar tracker products, the system ensures high reliability while maintaining cost-effectiveness. The ZRT-16 model stands out as the best in cost performance, providing an affordable solution for increasing energy yield.

Frequently Asked Questions

How much does the ZRT tracking system increase power generation?

The ZRT tilted single axis solar tracking system can increase your power generation by approximately 15% - 25% compared to fixed mounting systems.

What is the tracking accuracy of this system?

The system features high precision with an average tracking accuracy between 0.1° and 2.0°, which is fully adjustable based on requirements.

How many solar panels can be installed per set?

Each set is designed to mount between 10 to 20 pieces of solar panels, with a total installation area generally between 31 - 42 square meters.

What are the wind resistance limits?

The system is robustly designed to withstand a maximum wind resistance of 40 m/s in horizontal position and 24 m/s during active operation.

Can the system operate in extreme weather conditions?

Yes, the system is built with hot-dipped galvanized material (≥65μm) and is tested to work reliably in temperatures ranging from -40℃ to +75℃.

What is the typical power consumption of the tracker?
