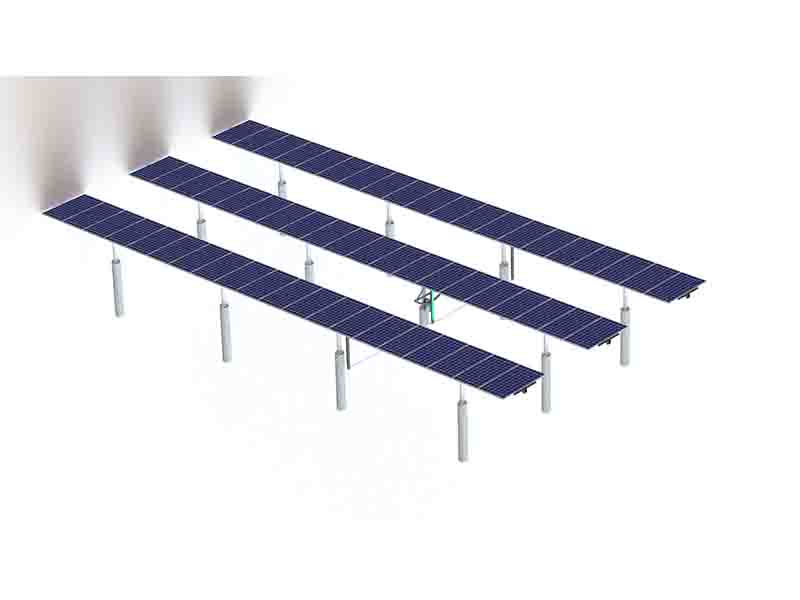

| System type | Single row type / 2-3 rows linked |
| Control mode | Time + GPS |
| Average tracking accuracy | 0.1° - 2.0° (adjustable) |
| Gear motor | 24V / 1.5A |
| Output torque | 5000 N·M |
| Tracking power consumption | 5kWh / year / set |
| Azimuth angle tracking range | ±45° - ±55° |
| Back tracking | Yes |
| Max. wind resistance in horizontal | 40 m/s |
| Max. wind resistance in operation | 24 m/s |
| Material | Hot-dipped galvanized ≥65μm |
| System warranty | 3 years |
| Working temperature | -40℃ - +80℃ |
| Weight per set | 200 - 400 KGS |
| Total power per set | 5kW - 40kW |

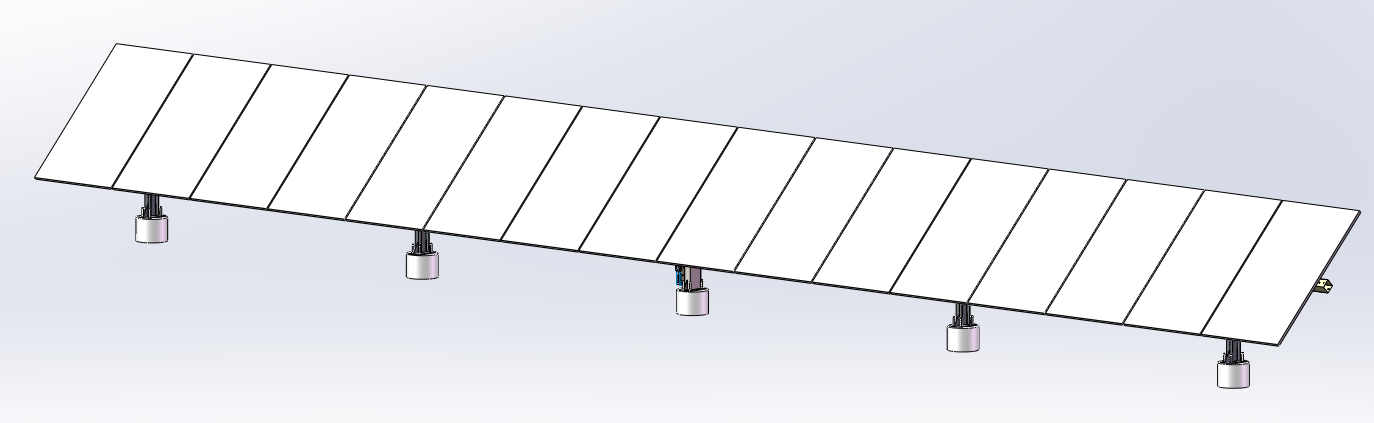

✔ZRP flat single axis solar tracking system has one axis tracking the azimuth angle of the sun. Each set mounting 10 - 60 pieces of solar panels, given a 15% to 30% production gain over fixed-tilt systems on the same size array.
✔At present, the flat single axis solar tracking system in the market mainly has two solar module layout forms, 1P and 2P. Due to the increasing size of solar modules, the length of solar modules has changed from less than 2 meters a few years ago to more than 2.2 meters. Now the solar modules length of most manufacturers is concentrated between 2.2 meters and 2.5 meters.
✔The stability and wind resistance of the flat single axis solar tracking system structure arranged by 2P are greatly challenged, Its long-term system stability needs more practical applications to verify. The single row type 1P layout solution is obviously a more stable and reliable solution.
✔Two different mature flat single axis drive solutions are available: Linear Actuator form and Gear Ring form according to the needs of customers and the actual situation of the project, providing the best solution flexibly in terms of cost and system reliability.
