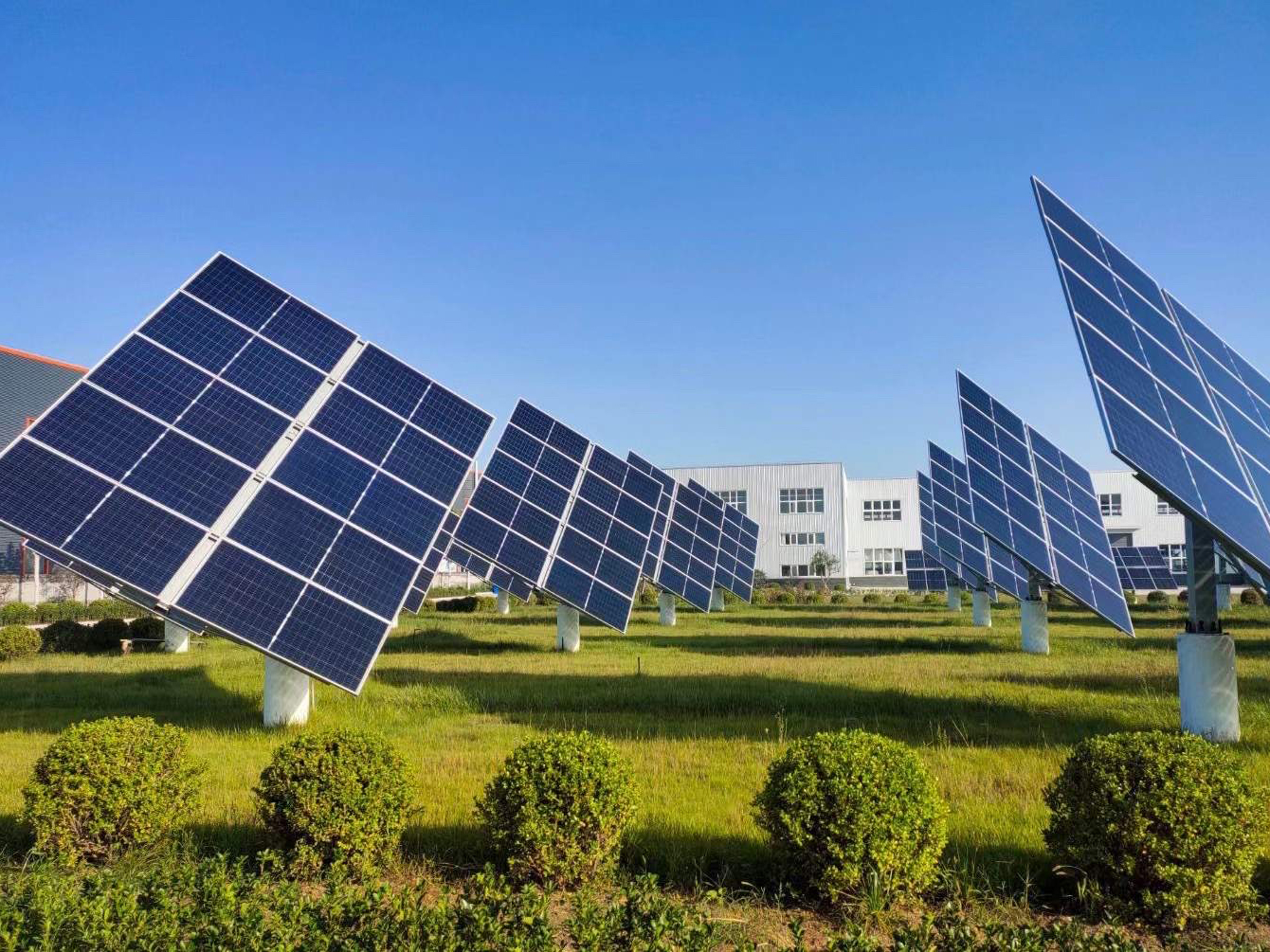

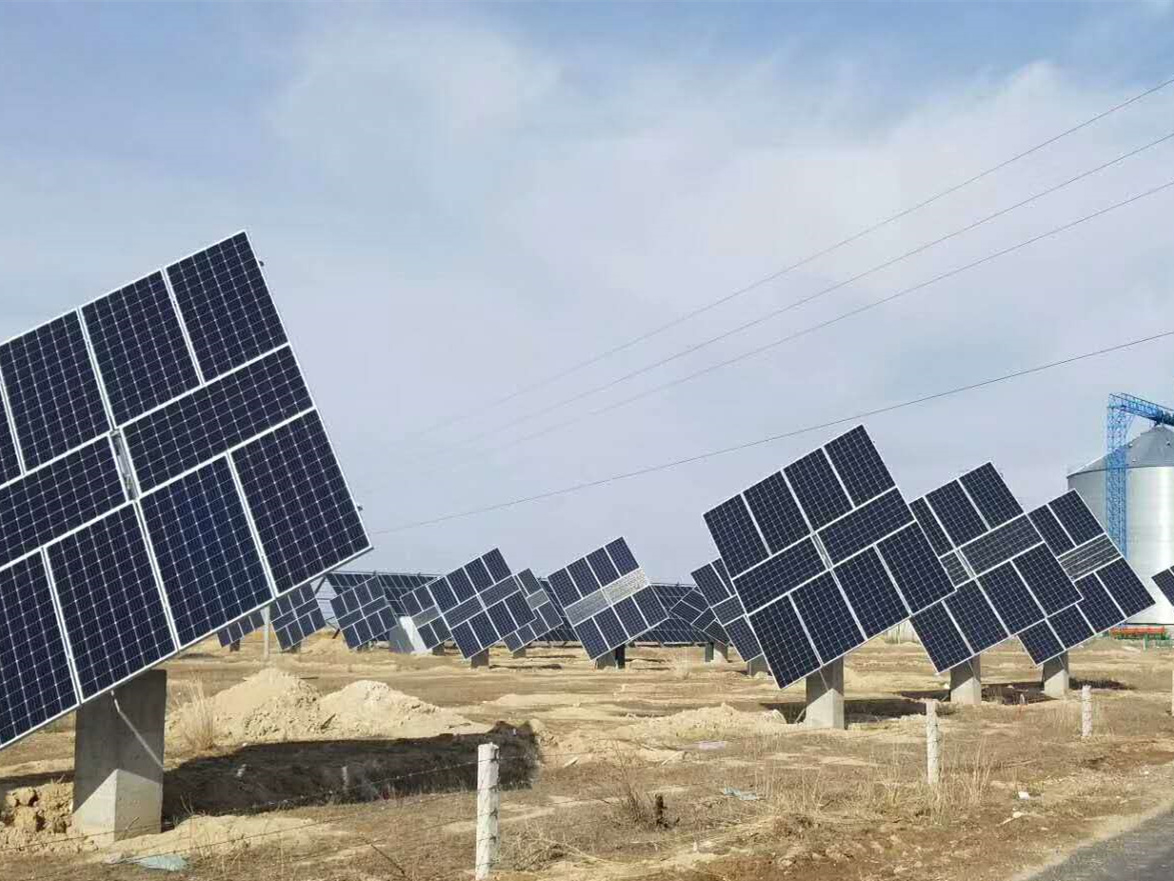

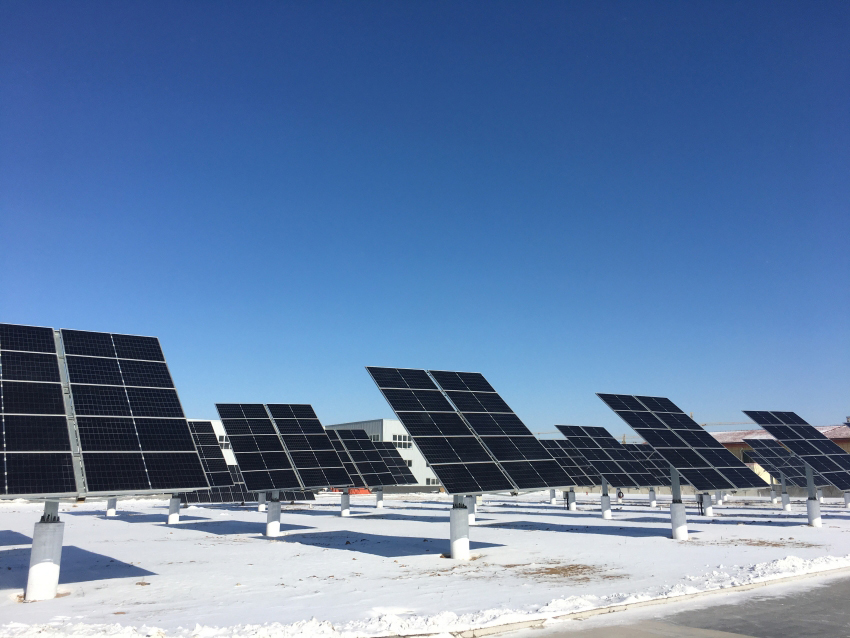

Buy ZRD-10 Dual Axis Solar Tracking System Supplier, Pricelist

Sunchaser Tracker has spent decades designing and perfecting the most reliable tracker on this planet. This advanced solar tracking system helps ensure continuous solar power production even in the most challenging weather conditions, supporting the global adoption of sustainable energy solutions.

Send Inquiry

Product Description

The dual axis tracking system represents decades of engineering aimed at delivering the most reliable solar tracking solution available. This advanced system ensures continuous solar power production even under challenging weather conditions, supporting the global transition to sustainable energy.

High Capacity

The ZRD-10 dual axis solar tracking system supports up to 10 solar panels with a total power range of 4kW to 5.5kW.

Efficiency

Panels are arranged in a 2 * 5 landscape layout, covering an area of less than 26 square meters, optimized for maximum power production.

Designed for simplicity and robustness, this tracker offers faster installation, superior wind resistance, and terrain navigation. It is the ideal choice for challenging sites, including irregular layouts, undulated terrain, and high-wind regions. With a focus on reducing components, the system minimizes O&M work while delivering the best levelized cost of electricity.

Control Algorithm	Astronomical Algorithms
Average tracking accuracy	0.1° - 2.0° (adjustable)
Gear motor	24V/1.5A
Tracking power consumption	< 0.02kwh/day
Azimuth angle tracking range	±45°
Elevation angle tracking range	0° - 45°
Max. wind resistance in horizontal	40 m/s
Max. wind resistance in operation	> 24 m/s
Material	Galvanized steel > 65μm / Pre-galvanized steel
System guarantee	3 years
Working temperature	-40℃ — +75℃
Technical standard & certificate	CE, TUV
Weight per set	200 KGS - 220 KGS
Module supported	Most commercially available
Total power per set	4.0kW - 5.5kW

Our production facility and supply chain network ensure high quality and reduced lead times. Through intelligent design, this tracker provides a cost-effective investment for diverse solar projects.

1. How many solar panels can the ZRD-10 system accommodate? The ZRD-10 dual axis tracking system is designed to support 10 pieces of solar panels, typically arranged in a 2 * 5 landscape layout.

2. What is the power output range for this tracking system? The total power capacity per set ranges from 4.0kW to 5.5kW, depending on the modules used.

3. How does the system handle extreme wind conditions? The system features superior wind resistance, with a maximum horizontal wind resistance of 40 m/s and operational resistance of over 24 m/s.

4. What is the daily power consumption of the tracker itself? The system is highly efficient, with a tracking power consumption of less than 0.02kwh per day.

5. Is the tracker suitable for extreme temperatures? Yes, the system is engineered to work reliably in temperatures ranging from -40℃ to +75℃.

6. What certifications does the ZRD-10 system hold? The system meets high technical standards and is certified by both CE and TUV.
